Butterfly Valve DN 1400 PN 6

Butterfly Valve DN 1400 PN 6

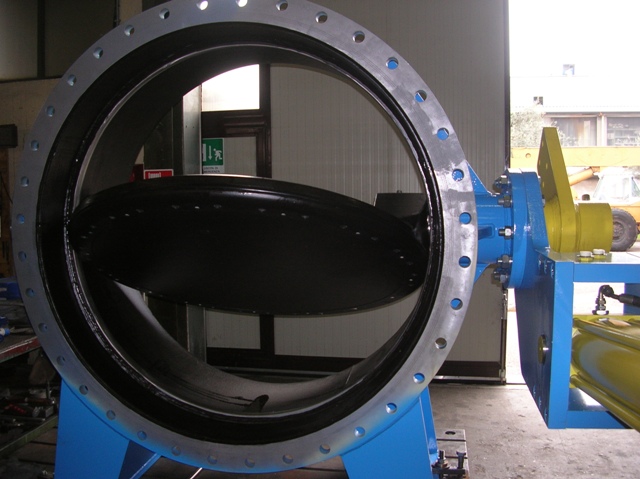

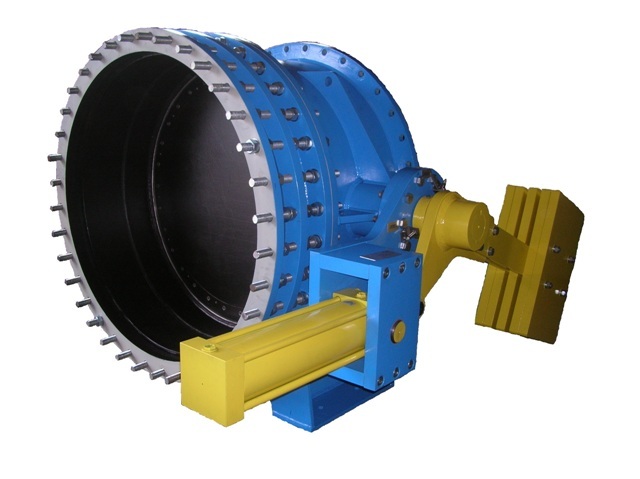

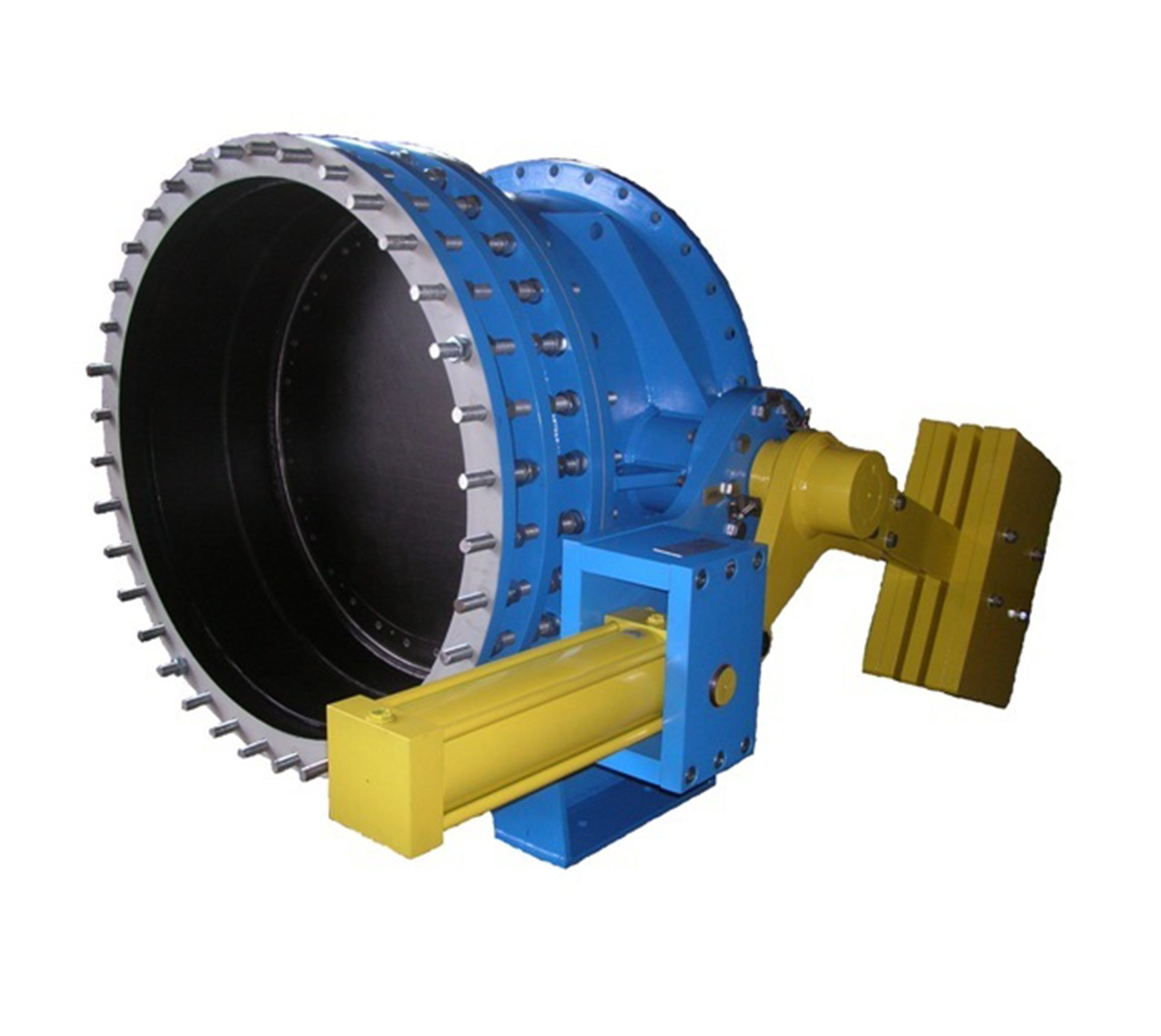

Supply of 1 butterfly valve DN 1400 PN 6 in electrowelded steel painted with epoxy cycle with double eccentricity lens and elastomer seal. The supply also includes the 3-flange disassembly joint.

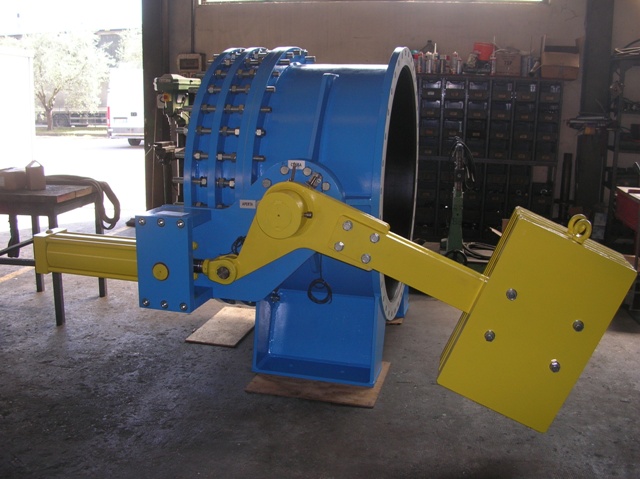

Operation is by means of an hydraulic servomotor acting on one of the pins, while closing is by means of a counterweight.

Main features:
Nominal diameter 1400 mm
Closing angle 90
Nominal pressure 6 bar
Test pressure according to UNI EN 12266-1 standards

Bill of materials:
Valve body: S355J2
Valve lens: Monolithic steel S355J2
Valve pins: AISI 420 hardened steel
Bushings: Self-lubricating material Fibre-reinforced TENMAT FEROFORM T814
Seal seat surfaces: AISI 304
